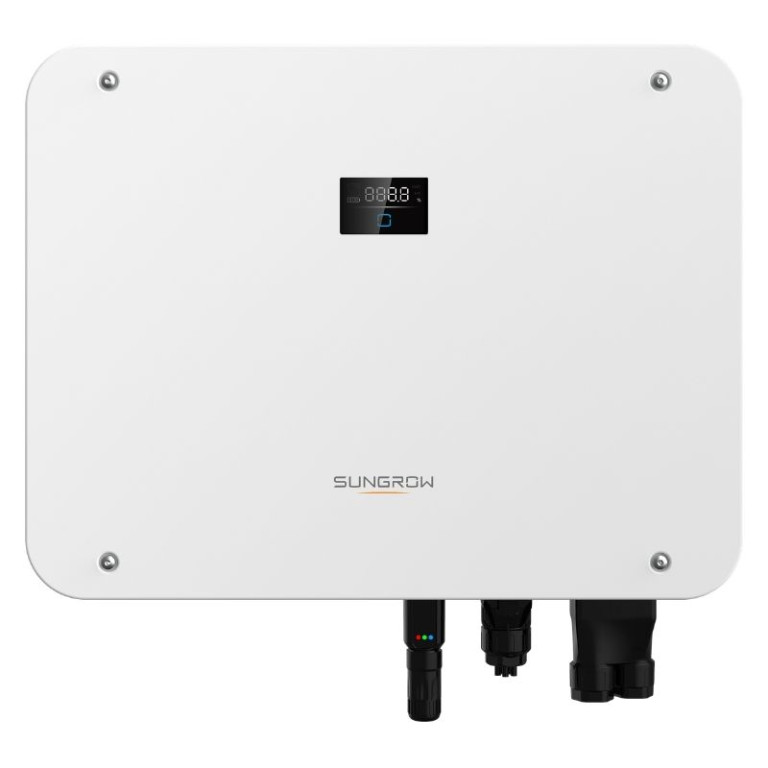

Sungrow 6kW three phase hybrid inverter SH6-T-V11 is designed for residential and smaller commercial PV systems where reliable three phase operation, battery storage compatibility and backup functionality are required. It is suitable for modern solar installations that need efficient energy management, stable performance and flexible system design.

The SH6-T-V11 model delivers 6kW rated AC output power, has two independent MPPT inputs and supports up to 12,000Wp recommended PV input power. With 1000V maximum PV input voltage and a 150–950V MPPT operating range, it offers flexible design options for rooftop PV systems with different module layouts.

The inverter supports lithium-ion batteries with a voltage range of 100–700V and enables up to 50A charge and discharge current. It is compatible with Sungrow SBR032 and SBH battery systems, making it suitable for hybrid solar installations with energy storage.

Backup function is included. SH6-T-V11 switches to backup mode in less than 10 ms and provides 6000W / 6000VA rated backup output. Peak backup output reaches 12,000W / 12,000VA for 10 seconds, supporting selected loads during grid outages.

The inverter includes a DC switch, SPD DC Type II and SPD AC Type II protection, integrated AFCI arc fault detection and PID Recovery function. Its IP65 and C5-rated enclosure supports reliable indoor and outdoor installation, while natural convection cooling enables quiet operation.

The package includes the DTSU666-2CT-20 meter and WINET-S2 communication module. SH6-T-V11 supports RS485, WLAN, Ethernet and CAN communication for system monitoring, battery integration and management through Sungrow platforms.

Sungrow 6kW three phase hybrid inverter SH6-T-V11 is available through the Energetik B2B platform for registered users. Energetik is an official Sungrow distributor and provides B2B solar equipment distribution for professional installers and EPC companies across the EU.
