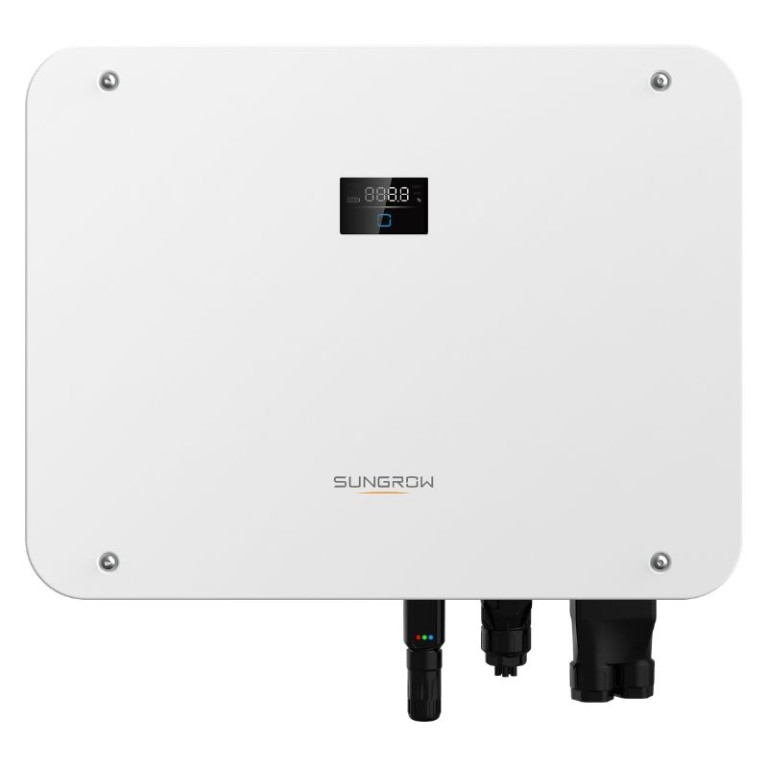

Sungrow 5kW three phase hybrid inverter SH5-T-V11 is a compact solution for residential and smaller commercial solar installations with battery storage. It is suitable for projects where reliable operation, backup power and efficient use of solar energy are important.

The SH5-T-V11 model has 5kW rated AC output power, two independent MPPT inputs and supports up to 10,000Wp recommended PV input power. The maximum PV input voltage is 1000V, while the MPPT operating range is 150–950V, allowing flexible rooftop PV system design.

The inverter supports lithium-ion batteries with a voltage range of 100–700V and enables up to 50A charge and discharge current. It is compatible with Sungrow SBR032 and SBH battery systems, making it suitable for modern hybrid solar installations with energy storage.

Backup function is included. The inverter provides backup transition in less than 10 ms and supports 5000W / 5000VA rated backup output. The integrated 63A bypass enables backup design for larger loads or whole-house backup, depending on system configuration and project requirements.

Sungrow SH5-T-V11 includes a DC switch, SPD DC Type II and SPD AC Type II protection, integrated AFCI arc fault detection and PID Recovery function. The IP65 and C5-rated enclosure supports reliable operation in indoor and outdoor environments.

The package includes the DTSU666-2CT-20 meter and WINET-S2 communication module. The inverter supports RS485, WLAN, Ethernet and CAN communication, enabling system monitoring, battery connection and management through Sungrow platforms.

Sungrow 5kW three phase hybrid inverter SH5-T-V11 is available through the Energetik B2B platform for registered users. Energetik is an official Sungrow distributor and provides B2B solar equipment distribution for professional solar installers and EPC companies across the EU.
