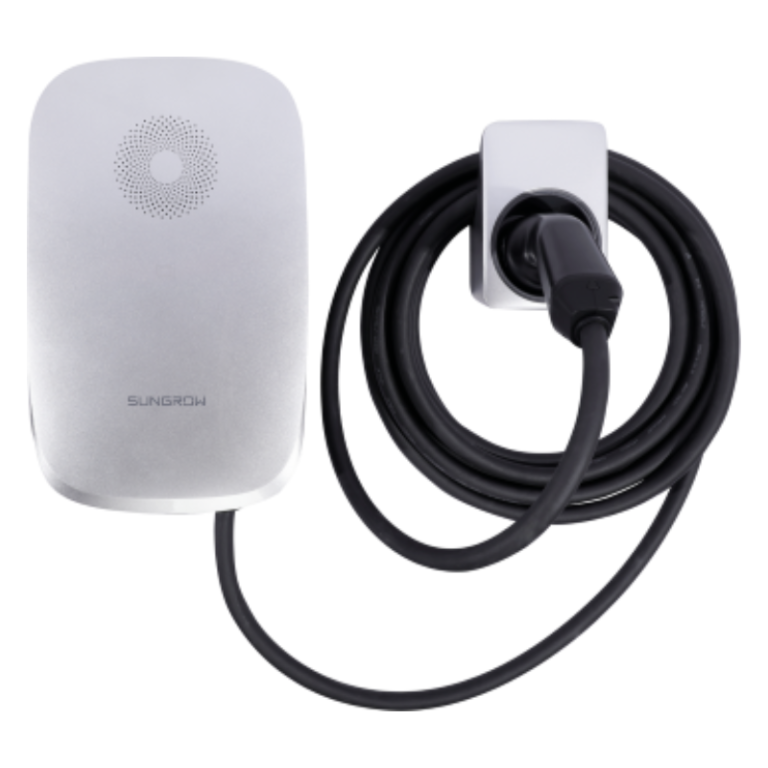

Sungrow AC22E-01 22kW AC EV Charger with 7 m Cable and 4G

Article code: A0CH1085
Sungrow AC22E-01 is a high-performance AC EV charger with adjustable power from 22kW, featuring an integrated 7-meter cable for convenient and ready-to-use charging. It is designed for reliable and safe operation in both residential and commercial environments.

With built-in 4G connectivity, it enables remote monitoring and control, while its robust construction ensures long-term durability even in demanding conditions.


Includes:

  • Sungrow AC22E-01 AC charger
  • Integrated Type 2 cable (7 m)
  • 4G communication module
  • Dynamic load management (load balancing ready)
  • Integrated protection (RCD + DC leakage detection)
  • OCPP support
  • Smart charging control


Advantages:

  • Integrated 7 m cable – easy and convenient use
  • Power 22kW
  • 4G connectivity – remote monitoring and control
  • Durable design – suitable for demanding environments
  • Built-in protections – safe operation
  • Ready for smart systems (OCPP)


Application:

  • Residential EV charging
  • Commercial buildings (B2B, fleet charging)
  • Parking areas and commercial facilities
  • Hotels and industrial sites

Sungrow AC22E-01 22 kW AC EV charger with integrated 7 m cable and 4G connectivity is a reliable solution for efficient and smart EV charging in residential and commercial applications.

The product is available via the Energetik B2B platform with access to stock and prices after registration.




Out of stock Notify me when the product is available.

REGISTER TO SEE PRICES
Documentation
Datasheet

TECHNICAL DATA

  • Model: AC22E-01
  • Model code: A0CH1085
  • Power: 22 kW
  • Charging type: AC (Mode 3)
  • Output: Type 2 cable (7 m)
  • Rated current: up to 32 A
  • Rated voltage: 230 / 400 V
  • Phases: single-phase / three-phase
  • Frequency: 50 / 60 Hz
  • Communication: 4G LTE, OCPP
  • Authentication: Plug & Charge / app-based
  • Protection: RCD protection, DC leakage detection (6 mA), surge protection
  • IP rating: IP54
  • IK rating: IK10
  • Operating temperature: -30 °C to +50 °C
  • Mounting: Wall-mounted
