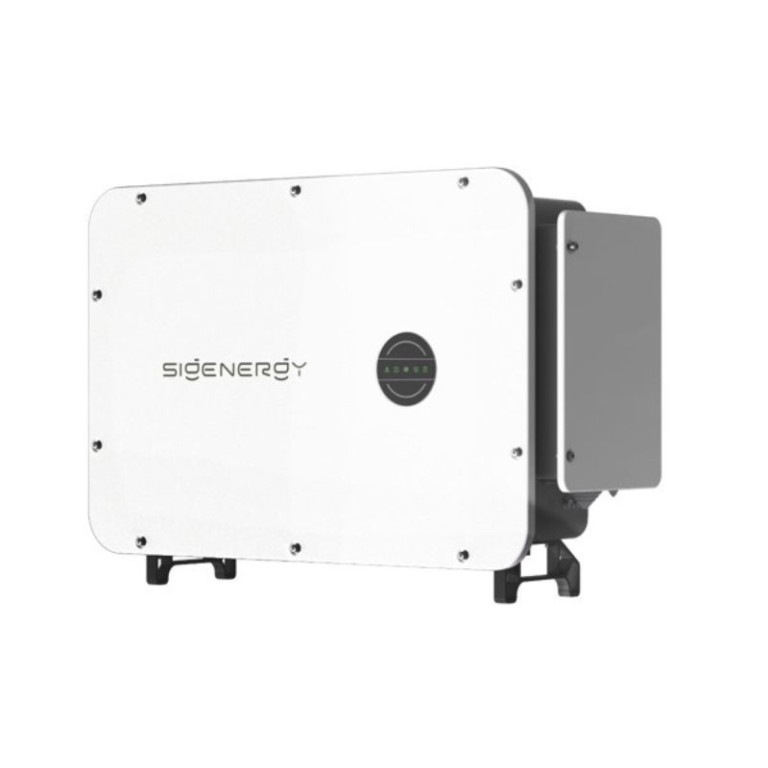

Sigenergy 110 kW three-phase inverter Sigen PV 110M1

The Sigenergy 110 kW three-phase inverter Sigen PV 110M1 offers a reliable and efficient solution for large commercial solar installations. With a maximum efficiency of 98.6 % and European efficiency of 98.4 %, combined with integrated AFCI protection and IP66 rating, it ensures safe and stable operation in any environment.

Its compact and durable design allows easy installation and parallel connection of multiple units without an external data logger, making it ideal for large systems requiring high reliability and low maintenance.



Key features – Sigen PV 110M1:

• High efficiency – up to 98.6 %
• European efficiency – 98.4 %
• IP66 protection for outdoor use
• AFCI safety system
• PV reverse connection alert
• Parallel connection without a logger
• Smart air cooling system



Technical specifications – Sigen PV 110M1:

• Rated AC power: 110 kW
• Max. apparent power: 121 kVA
• Max. output power (10 s): 121 kW
• MPPT voltage range: 160 – 1 000 V
• MPPT inputs: 8
• Max. input current per MPPT: 32 A
• Output voltage: 400 V (3W+N+PE)
• Max. efficiency: 98.6 %
• European efficiency: 98.4 %
• Dimensions (W/H/D): 918 × 640 × 340 mm
• Weight: 75 kg
• Cooling: Smart air cooling
• Protection: IP66
• Nighttime consumption: < 3.5 W
