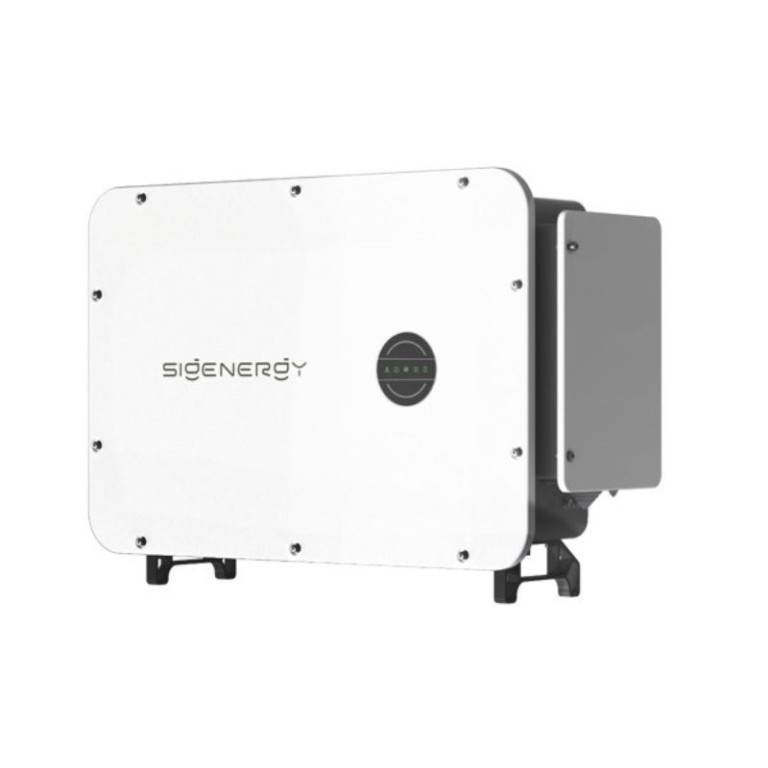

Sigenergy 100 kW three-phase inverter Sigen PV 100M1

The Sigenergy 100 kW three-phase inverter Sigen PV 100M1 is a robust and reliable solution for large commercial solar power plants, where high efficiency and stability are essential. With up to 98.6 % efficiency, 98.4 % European efficiency, and an integrated AFCI safety system, it ensures safe and optimal operation even in demanding conditions.

Its compact yet strong design allows fast installation, while IP66 protection ensures worry-free outdoor use. The inverter supports parallel connection of multiple units without an external data logger, simplifying management and reducing operational costs.


Key features – Sigen PV 100M1:

• High efficiency – up to 98.6 %
• European efficiency – 98.4 %
• IP66 protection for outdoor installation
• AFCI safety system
• PV reverse connection alert
• Parallel connection without a logger
• Optimized weight for fast installation and lower transport costs



Technical specifications – Sigen PV 100M1:

• Rated AC power: 100 kW
• Max. apparent power: 110 kVA
• Max. output power (10 s): 110 kW
• MPPT voltage range: 160 – 1,000 V
• Number of MPPT inputs: 8
• Max. input current per MPPT: 32 A
• Output voltage: 400 V (3W+N+PE)
• Max. efficiency: 98.6 %
• European efficiency: 98.4 %
• Dimensions (W/H/D): 918 × 640 × 340 mm
• Weight: 75 kg
• Cooling system: Smart air cooling
• Protection: IP66
• Nighttime power consumption: < 3.5 W
