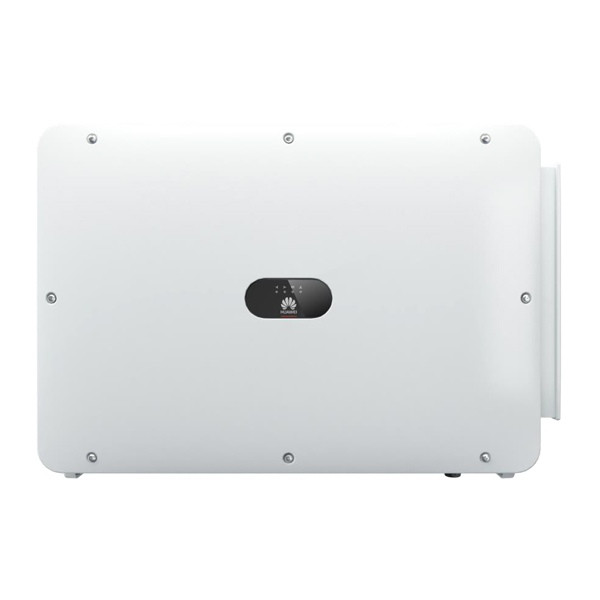

Huawei 215kW three-phase inverter Huawei SUN2000-215KTL-H3

Three-phase string inverter for utility-scale applications.

• Number of MPPTs: 3
• DC inputs: 14
• Maximum input voltage: 1500 V
• AC output voltage: 800 V 3P + PE
• Integrated DC circuit breakers
• IP 66
• RS485, MBUS, USB, optional: WiFi, Ethernet, 4G / 3G / 2G (with SmartLogger 3000A)
• LED indicators
• Maximum current per MPPT:100A
• Maximum efficiency: 99.0%

Configuration and Monitoring

• The Huawei SUN2000-215KTL-H3 inverter is configured via the FusionSolar application, with which it is possible to set parameters and query the alarms. The app also allows for remote management and monitoring of Huawei C&I inverters, after connecting the inverters to the SmartLogger 3000A (optional), which has WiFi, LAN and 4G connectivity.

Safety

• This inverter has a fuse-free design and features type 2 AC and DC surge arresters. It also features String Fault Monitoring and residual current monitoring.
