WHES 1488kW/2980kWh Utility Energy Storage System PA-3.0EU is a
containerised battery storage solution for large-scale energy, infrastructure and renewable power projects. It stores electricity in a high-voltage LFP battery system and supplies it back to the grid according to project and energy management requirements.
Configuration
IA-1488kW/2980kWh-DA10 provides
1488kW rated AC output power. The commercial product designation specifies
2980kWh, while the technical datasheet lists an exact system capacity of
2981kWh.
PA-3.0EU is suitable for large solar and wind power plants, load shifting, peak shaving and grid support applications. Its final operating strategy, transformer connection, protection concept and energy management system must be defined during project design.
The system uses LFP, also known as
LiFePO4,
battery cells rated at
3.2V and
280Ah. Its
string architecture enables separate control of individual battery branches, limits the effect of a single-point failure and helps prevent state-of-charge imbalance between battery clusters.
Eight PCS units, each rated at
186kW, provide a combined AC output of
1488kW. Maximum charging power is
1456kW, while maximum discharging power reaches
1528kW. The system uses a
3W+PE connection with a rated AC voltage of
690V.
Liquid cooling is used for the battery system, while the PCS units use intelligent air cooling. PA-3.0EU can maintain full performance at ambient temperatures up to 50°C, supporting operation in demanding outdoor and utility-scale environments.

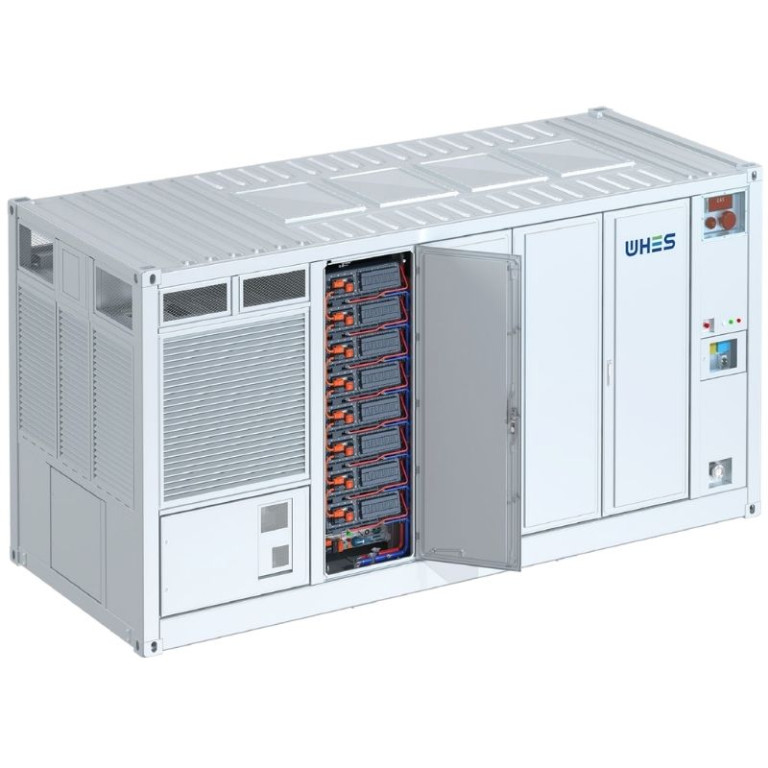

The factory pre-assembled
All In One container design reduces on-site wiring, installation time and the risk of connection errors. Automatic coolant refilling and replacement further simplify maintenance of the thermal management system.
Its safety design includes
IP67 protection for the batteries,
IP65 protection for the
PCS and multi-level active and passive fire protection. Safety equipment includes smoke, heat and flammable gas detection, an audible alarm, aerosol and water-based fire suppression and a pressure relief panel.
WHES PA-3.0EU is intended for utilities, renewable energy developers, EPC contractors, system integrators and investors delivering large battery energy storage projects.
WHES
1488kW/2980kWh Utility Energy Storage System PA-3.0EU is available through the
Energetik B2B platform for registered users and professional partners delivering utility-scale energy storage projects across the EU.
